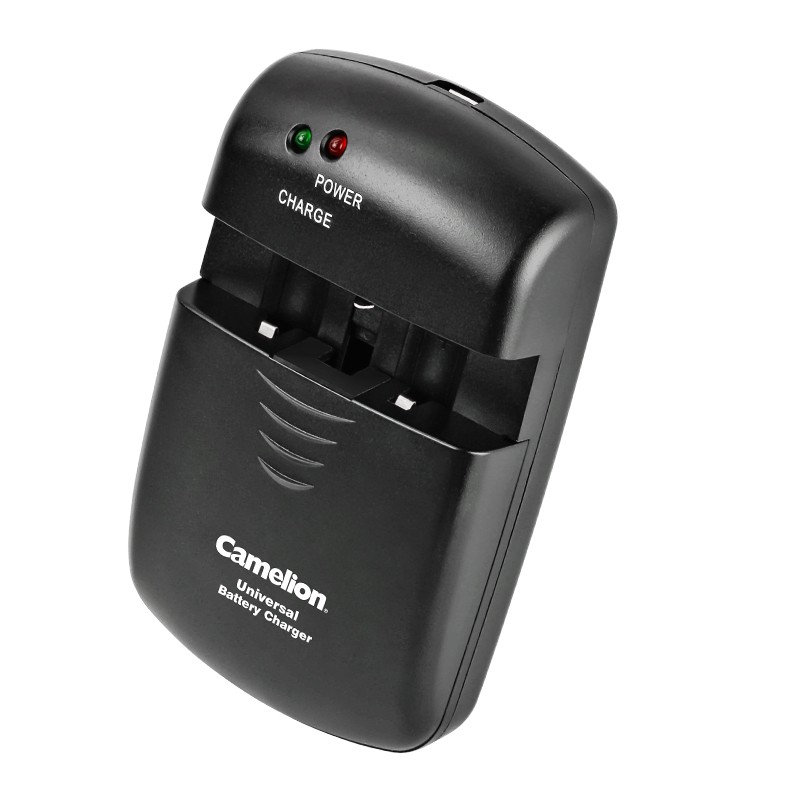

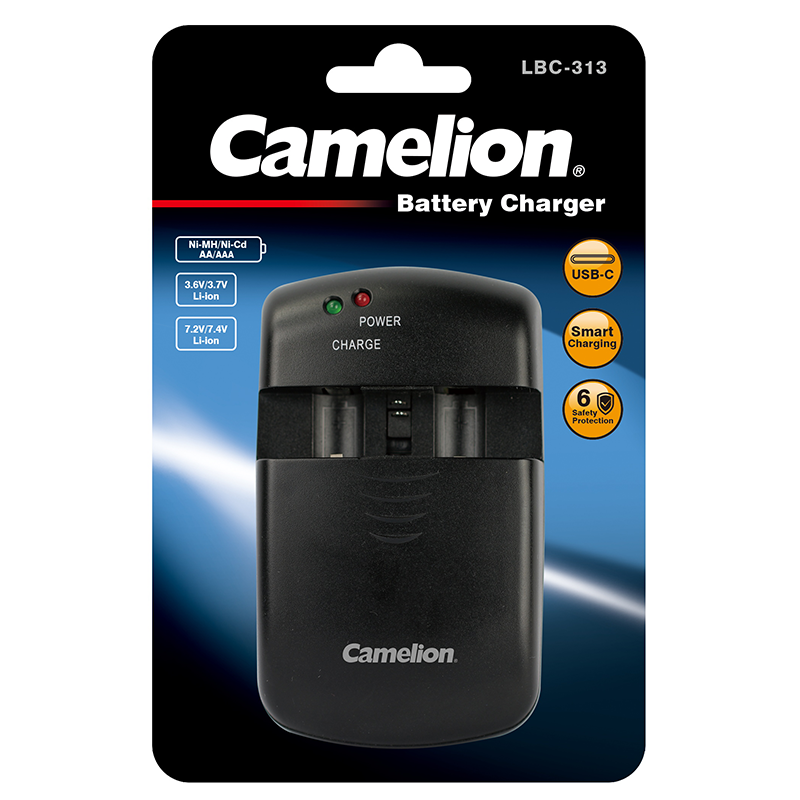

LBC-313



 This intelligent USB Charger is designed for recharging 1-2PCS 3.6V / 3.7V / 7.2V / 7.4V cylindrical lithium battery (10440/14500/16340) or 1.2V Ni-MH / Ni-Cd AA / AAA battery. It’s the best power companion for digital camera, video camera, mobile phone, MP3 / 4 and LED flashlight end users.





 ● Charges Most 1.2V, 3.7V and 7.4V Li-ion/Ni-MH/Ni-Cd batteries

 ● Automatic Voltage and Polarity Selection Capability
 ● Automatic Detect Faulty and Defective Battery
 ● Timer Control Protection (5hrs for Ni-MH / Cd or 10hrs for Li-ion)
 ● USB Output Port Design

Charging: Green LED flashes (1 time/s)
Fully charged:
Green LED remain on
Red and Green LED Flashing:

Charging error and stop charging after a

few seconds



Battery Type Battery Capacity Charging time (Appr.)
NP-30 3.7V Lithium-ion 1000 mAh 2.0h
CGR-320 7.4V Lithium-ion 3200 mAh 5.5h
14500 Lithium-ion 1000 mAh 2.0h
AA Ni-MH 1500 mAh 2.5h
AAA Ni-MH 800 mAh 1.5h
AA Ni-Cd 1000 mAh 2.0h
AAA Ni-Cd 300 mAh 30min




    Input: DC 5V    1A
    Output:
        2 x (1.4V  0.7A) max (1.2V NH/NC Battery)
        4.2V  0.7A max (3.7V Li-ion Battery)
        8.4V  0.45A max (7.4V Li-ion Battery)
    Trickle Charging current: 70mA
