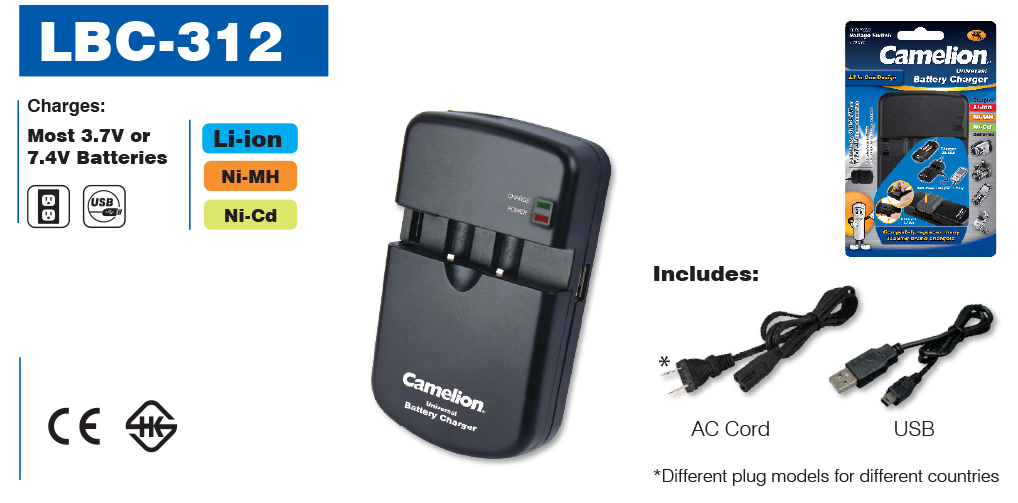

LBC-312

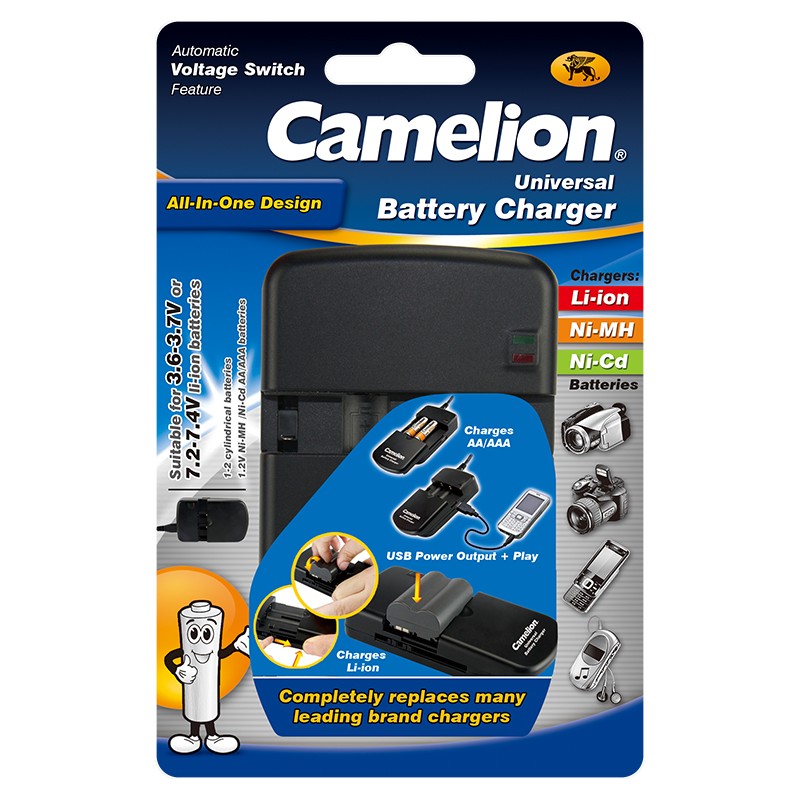

    This intelligent USB Charger is designed for recharging 1-2PCS 3.6V / 3.7V / 7.2V / 7.4V cylindrical lithium battery (10440/14500/16340) or 1.2V Ni-MH / Ni-Cd AA / AAA battery. It’s the best power companion for digital camera, video camera, mobile phone, MP3 / 4 and LED flashlight end users.





● All-In-One Universal Battery Charger Compatible with 3.6-3.7V

and 7.2-7.4V Li-ion, 1.2V AA/AAA Ni-MH and Ni-CD batteries for such

devices as digital cameras,.Camcorders, mobile phones, MP3 /MP4

players, game  players.*

 ● USB Output Port Charge mobile phones directly while charging

inserted batteries.

 ● Charges different Brand Batteries Supports devices from Canon,

Casio, Fuji, GP, Hitachi,JVC, Kodak, Kyocera,Minolta, Nikon, Olympus,

Optex,Panasonic, Pentax,Polaroid, Ricoh, Samsung, Sanyo,Sony,

Toshiba and more.

 ● Automatic Voltage/Polarity Selection Microprocessor core

identifies battery type and +/-polarity, make it easy to use.

 ● Fast and Precise Charging Microprocessor fast charging with

automatic charge current control and over charge protection**

 ● 3 Independent Charging Channels support variety battery

charging combination

 ● Safe Faulty battery detection and safety timer control system

(Ni-MH,5hrs; Lithium 10hrs).

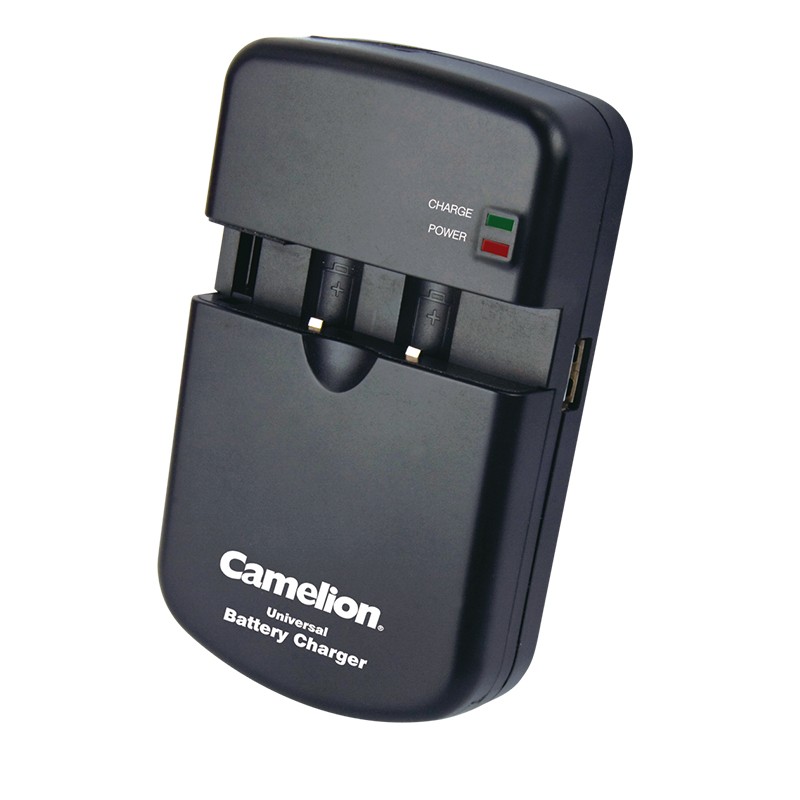

 ● LED Indicators display charging and power on modes

 ● Portable Lightweight and Universal voltage design for easy

traveling.

    * Excludes batteries with contacts on different sides.

    ** The battery and charger will warm up when charging. This is

normal.

Green Red Condition
OFF
OFF No power
OFF ON Power on
ON ON Fully charged
Flashing ON Battery charging
Flashing Flashing Defective battery detected or charging
process stopped by safety timer




Battery Capacity Charging time (Appr.)
Ni-MH AA 2700 mAh 2.0h
Ni-MH AA 2000 mAh 5.5h
Ni-MH AA 1500 mAh 2.0h
Ni-MH AAA 800 mAh 2.5h
Ni-Cd AA 1000 mAh 1.5h
Ni-Cd AAA 300 mAh 2.0h



















Battery Capacity(Li-ion) Charging Times
2200 mAh 3.5 h
1800 mAh 3 h
1400 mAh 2.5 h
1000 mAh 100 min
600 mAh 70 min
















Charger:
    Input: 100-240V~50/60Hz
    Output:
        2 x (1.4V  0.7A) max (1.2V NH/NC Battery)
        4.2V  0.8A max (3.7V Li-ion Battery)
        8.4V  0.6A max (7.4V Li-ion Battery)
    USB Port: 5V  0.5A
