Product ZoneBattery Charger : Ni-MH Battery Charger >

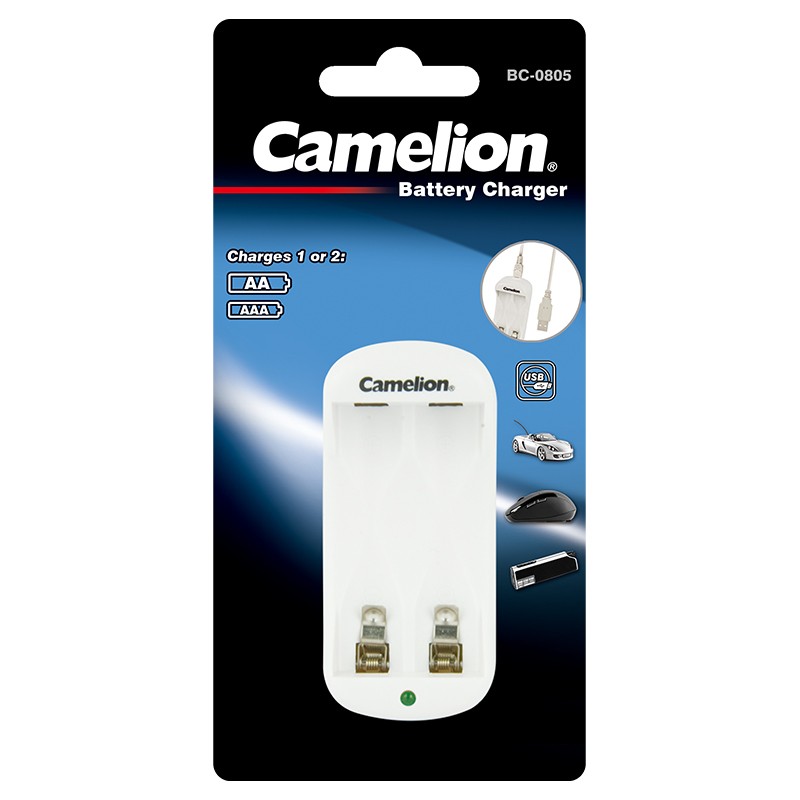

BC-0805


    These new compact light USB charger are designed for travel. It is idea topower-up NiMH and NiCd AA/AAA batteries via any USB source. Whether at

home or away from home this handy USB battery charger delivers reliable performance.

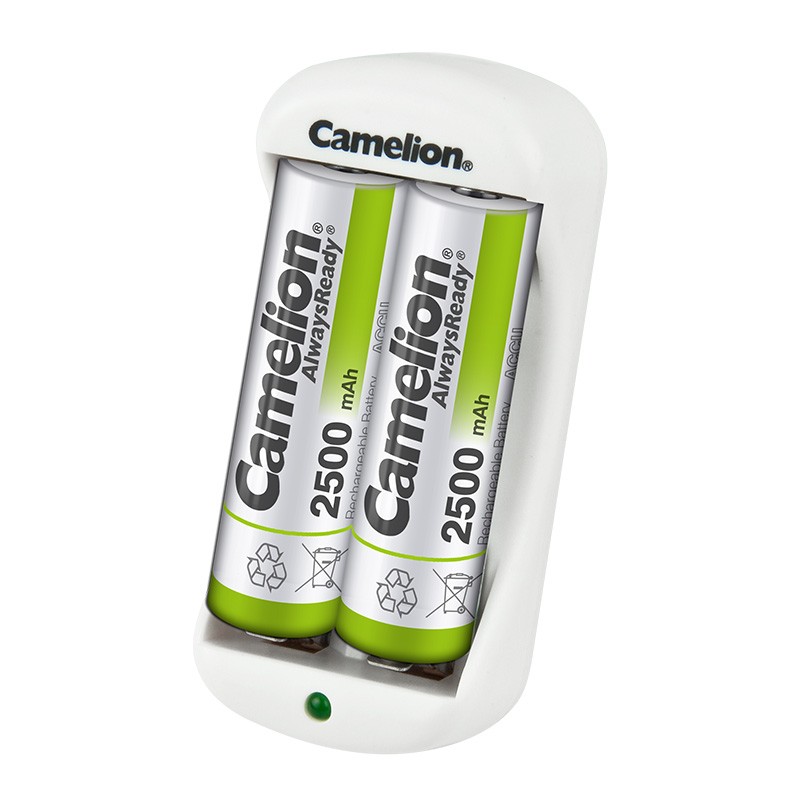

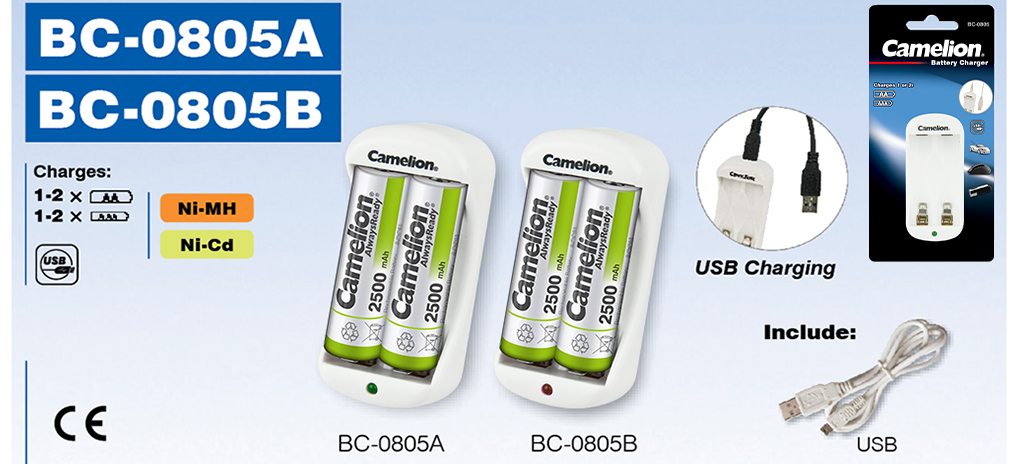

BC-0805A

    ● Charging Function Charger is designed to charge 1 or 2 pcs

NC/NH AA/AAA batteries
    ● Reverse Polarity Protection Specially designed slots prevent

incorrect connection of the batteries
    ● Timer Control Protection The charger automatically detects

the charging time and cut off the current after 12 hours
    ● -△V Cut Off The high sensitivity electronic circuit stops

charging, once it detects the batteries are fully charged
    ● Green LED Indicator Charging: LED flashing, Full: LED

constant on

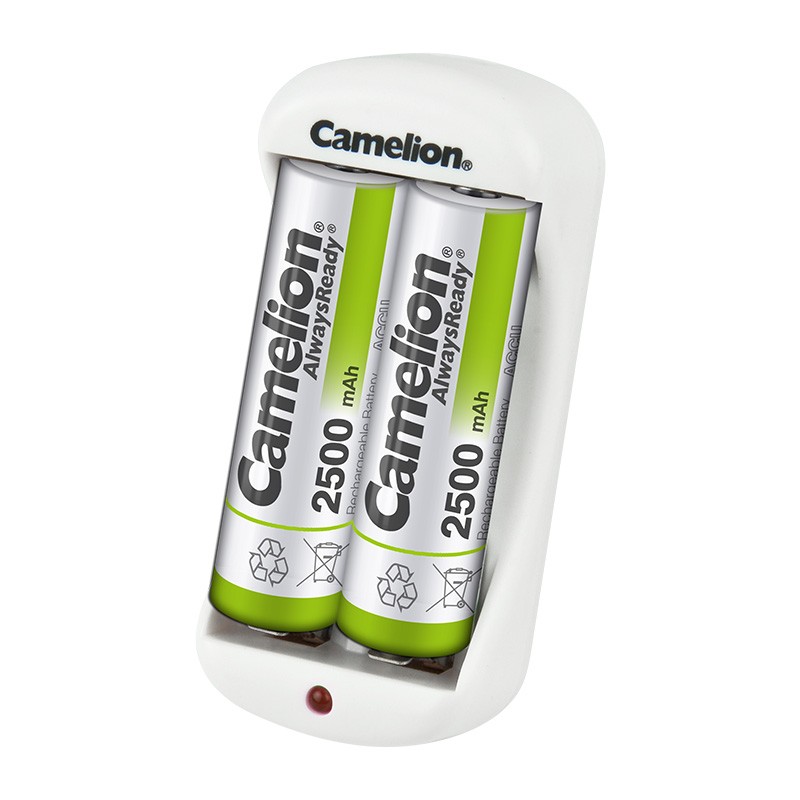

BC-0805B
    ● Charging Function Charger is designed to charge 2 pcs

NC/NH AA/AAA batteries
    ● Reverse Polarity Protection Specially designed slots prevent

incorrect connection of the batteries
    ● Red LED Indicator Charging or Charge Completed: LED

constant on

Type of Battery Charging time (Appr.)
  BC-0805A BC-0805B
Ni-MH AA 2300mAh 11 h 21.5 h
Ni-MH AA 2000mAh 9.5 h 19 h
Ni-MH AAA 1100mAh 4.5 h 10 h
Ni-MH AAA 800mAh  3 h 7.5 h
Ni-Cd AA 1000mAh  4 h 9.5 h
Ni-Cd AAA 300mAh 1.5 h 2.5 h




BC-0805A
    Input: 5V  500mA
    Output: 2 x (1.4V  300mA) AA/AAA size
    Timer Control:12 hours
BC-0805B
    Input: 5V  500mA
    Output: 2.8V  150mA AA/AAA size
