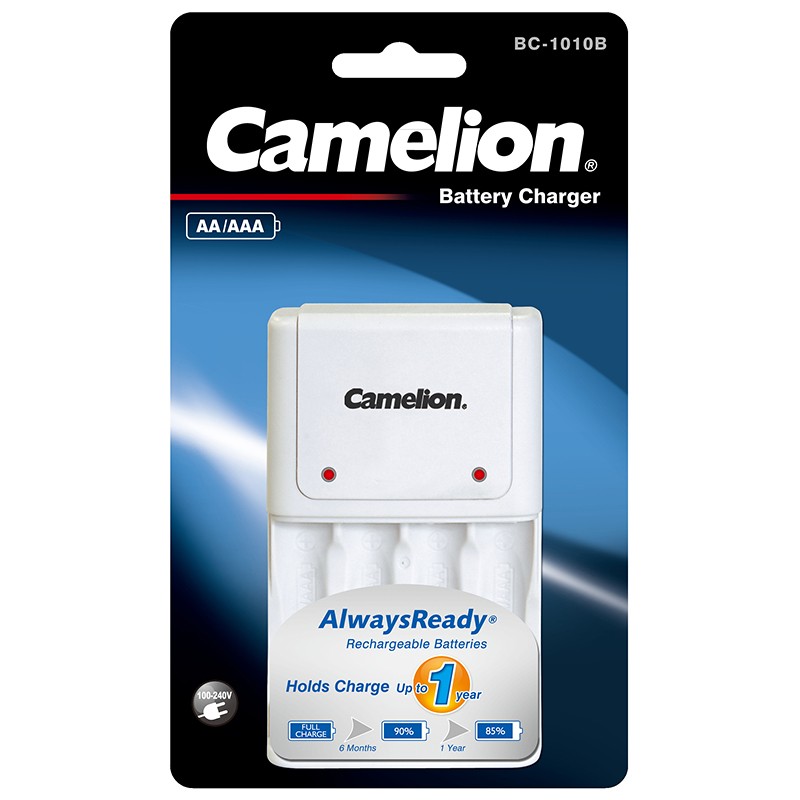

BC-1010B

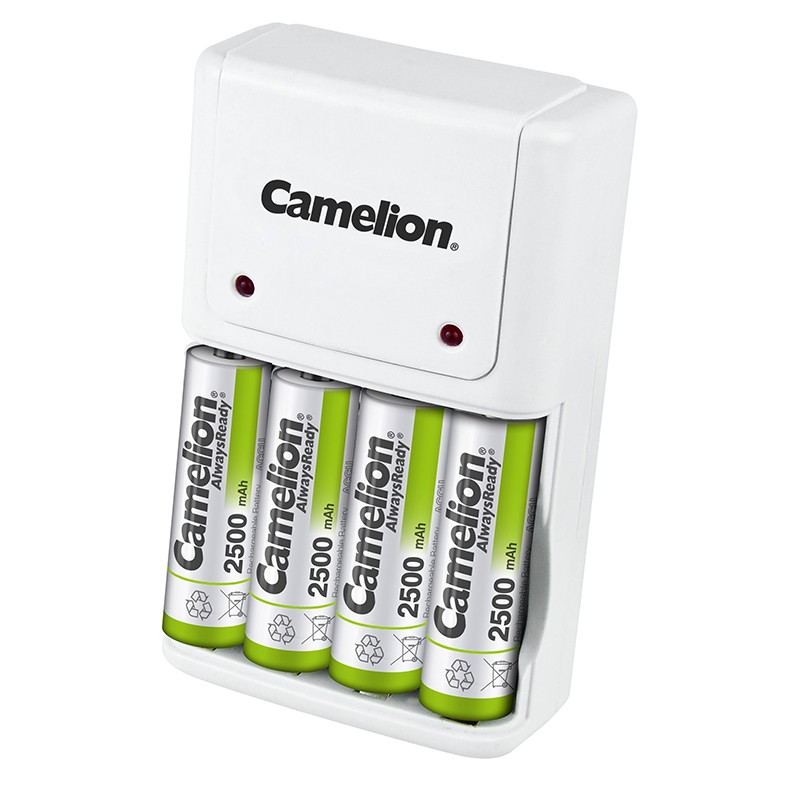

    The BC-1010B Camelion battery charger is a compact unit that charges 2 or 4 NiMH/NiCd batteries.






    ● 2 independent charging channels

    ● Charges 1 or 2 pairs of AA/AAA Ni-MH or Ni-Cd batteries
    ● Low Charging current for longer battery life Since this unit

uses a relatively low charging current the lifetime of your batteries

is maximized.
    ● AA/AAA Reverse Polarity Protection To help prevent
inserting batteries the wrong way and thus damaging the batteries,

the unit oryourself, the unit is specially designed to prevent incorrect

battery polarity insertion.
    ● 2 Low Battery Leakage Current If the battery charger is not

connected to input power and left in the charger, the charger will

discharge the batteries using a pre- determined current.
    ● Worldwide Use AC AC100-240V~50/60Hz
    ● 2 LED Indicators The red LEDS light up to indicate charging

is in progress. The LED(s) do not change color  when batteries

are fully charged.

 Red           Charging or fully charged



Type of Battery Charging time (Appr.)
Ni-MH AA 2000 mAh 12 h
Ni-MH AA 1500 mAh 11 h
Ni-MH AAA 800 mAh 5 h
Ni-MH 9V 200 mAh 11 h
Ni-Cd AA 1000 mAh 6 h
Ni-Cd AAA 300 mAh 2 h




    Input: 100-240V~50/60Hz
    Output: 2 x (2.8V  200mA) AA/AAA
