Product ZoneBattery Charger : Ni-MH Battery Charger >

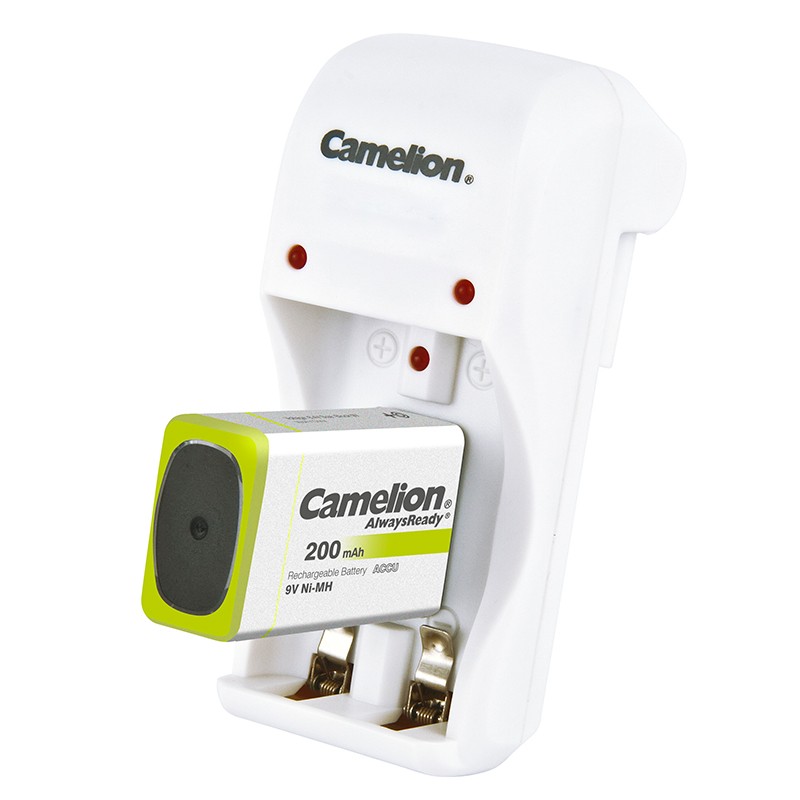

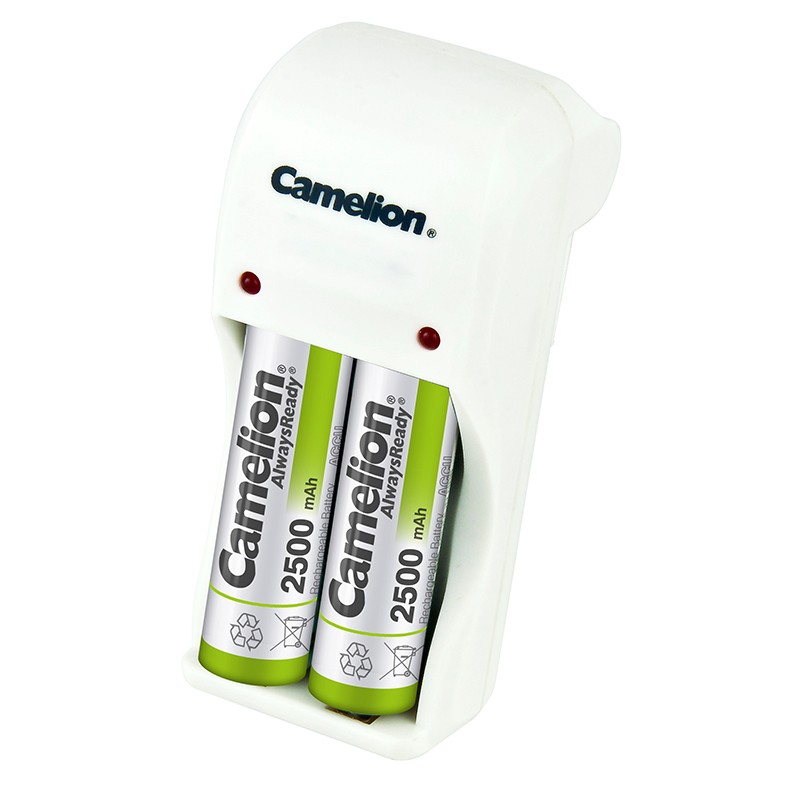

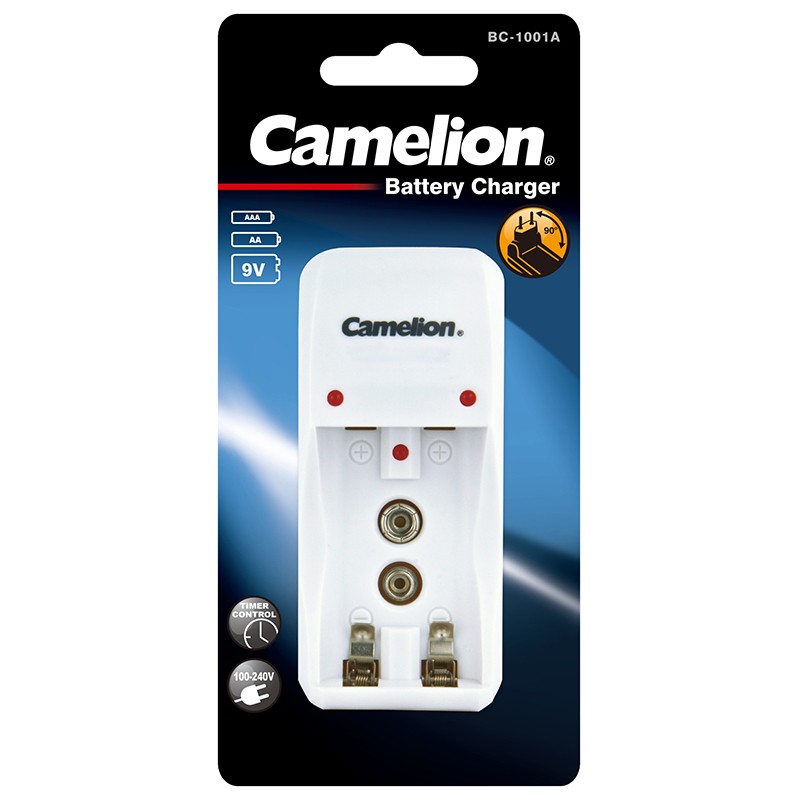

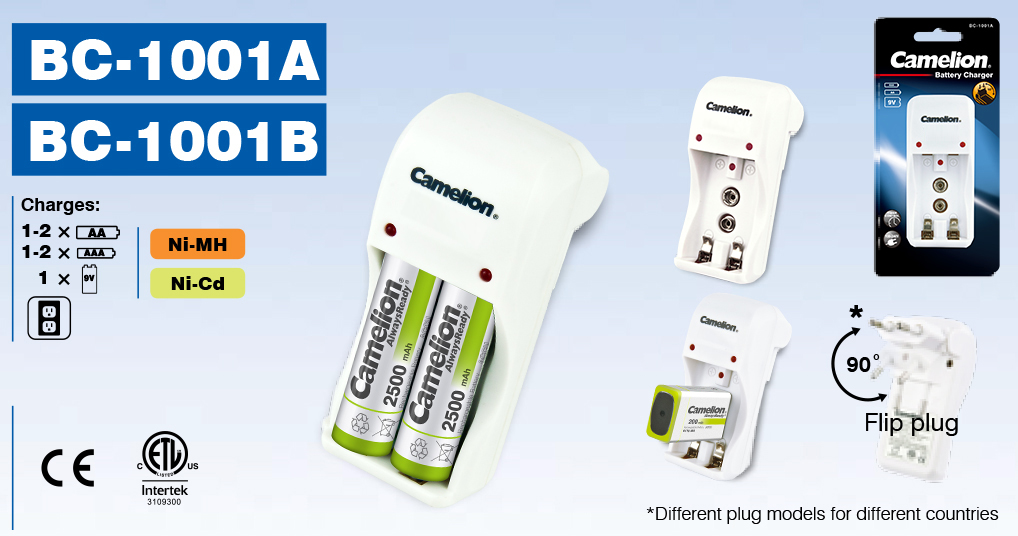

BC-1001








    ● 3 Independent Charging Channels

 ● 12 Hours Timer Control (BC-1001A)
 ● Reverse Polarity Protection
 ● Slim and Portable
 ● LED Indicators (BC-1001A)

 Red  Charging
 Off  Fully charged

● LED Indicators (BC-1001B)

 Red           Charging or charge completed




Type of Battery Charging time (Appr.)
  BC-1001A BC-1001B
Ni-MH AA 2000 mAh 12 h 14 h
Ni-MH AA 1500 mAh 11 h 11 h
Ni-MH AAA 800 mAh 5 h 5 h
Ni-MH 9V 200 mAh 11 h 18 h
Ni-Cd AA 1000 mAh 6 h 6 h
Ni-Cd AAA 300 mAh 2 h 2 h




    Input: 100-240V~50/60Hz
    Output: 2 x (1.4V  200mA) AA/AAA Size
              1 x (9V  25mA) 9V Size (BC1001A)
              1 x (9V  16mA) 9V Size (BC1001B)
