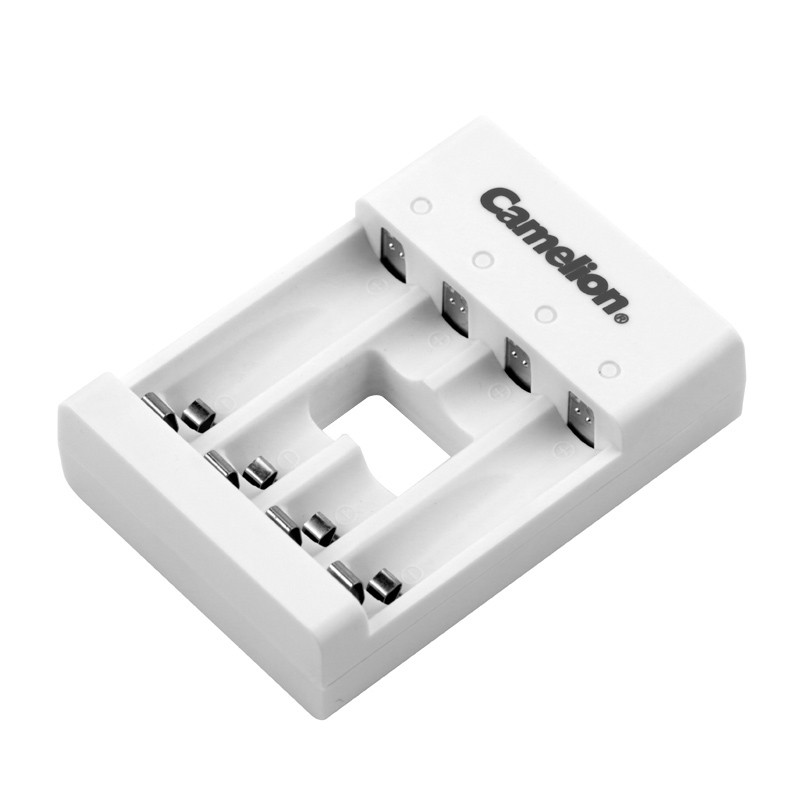

BC-0807S

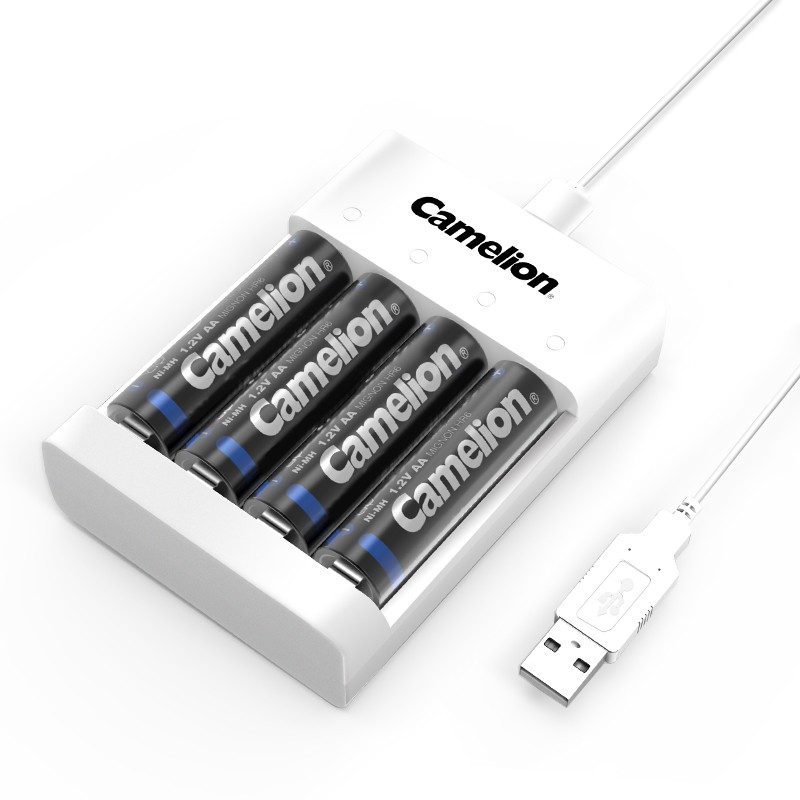

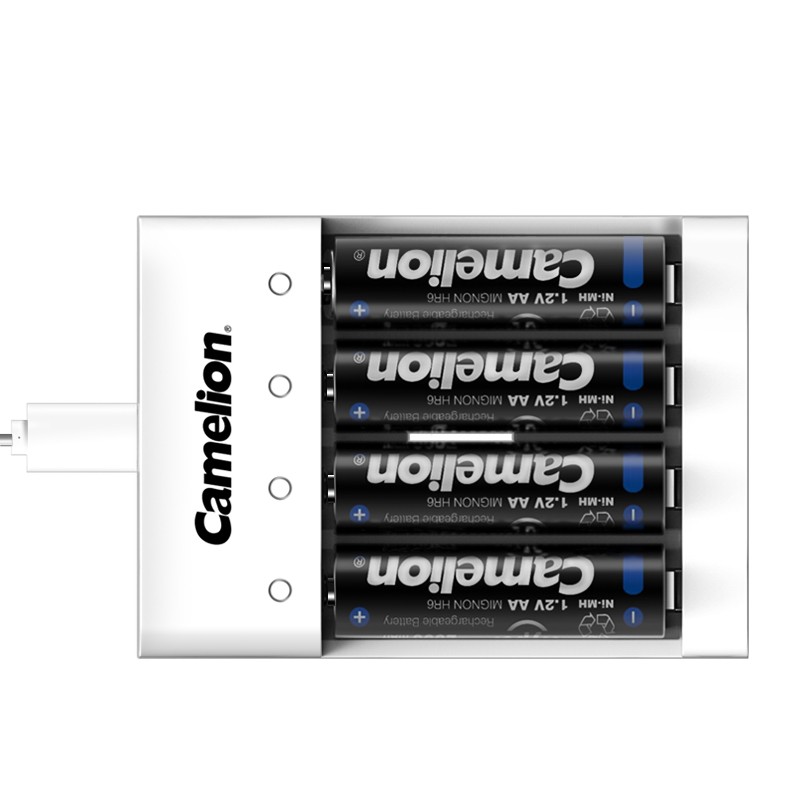

        BC-0807S USB Battery Charger is designed to charge 1 to 4pcs Ni-Mh/Ni-Cd AA/AAA rechargeable batteriesovernight. The 4 independent charging

channels are allowed to use respectively or with optional combination, AA and AAA batteries can be charged in each channel.

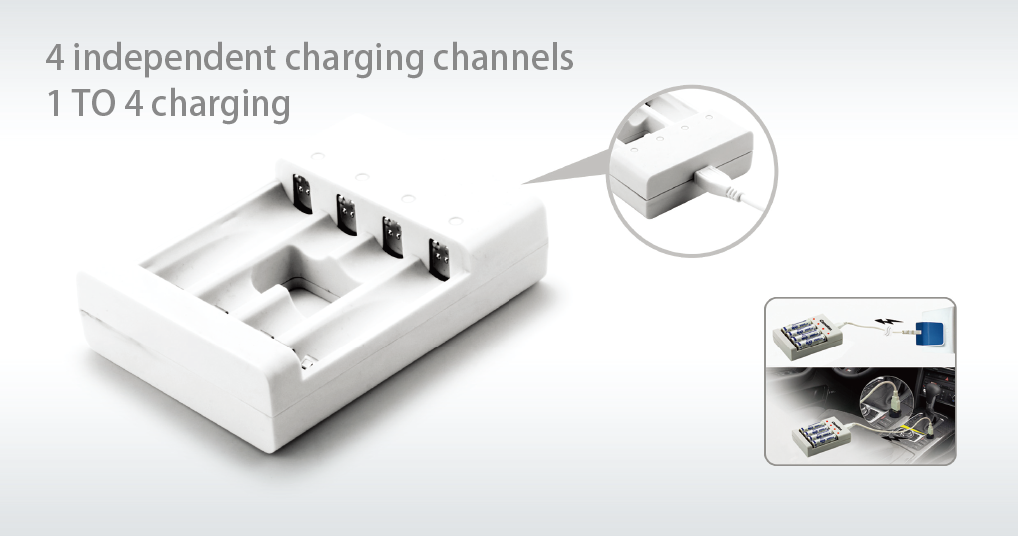

 ● Charging Function: 4 independentcharging channels allowing

to use respectively or with optional combination

 ● Reverse Polarity Protection: Specially designed compartment

to prevent incorrect batteries polarity connection,protecting both

charger and batteries
 ● LED Indicators: 4 Red LED constantly on when charging

Type of Battery Charging time
Ni-MH AA 2700mAh 17h
Ni-MH AA 2300mAh 15h
Ni-MH AA 2000mAh 14h
Ni-MH AAA 1100mAh 14h
Ni-MH AAA 800mAh 11h
Ni-Cd AA 1000mAh 6.5h
Ni-Cd AAA 300mAh 3.5h

*The charging time varies according to different batteries. For a
more complete listing please visit www.camelionbattery.com



    Input voltage: 5V  1A
    Output voltage: 4 x 1.4V
    Charging current: AA: 200mA
                                   AAA: 100mA
