Product ZoneBattery Chargers : Ni-MH Battery Chargers >

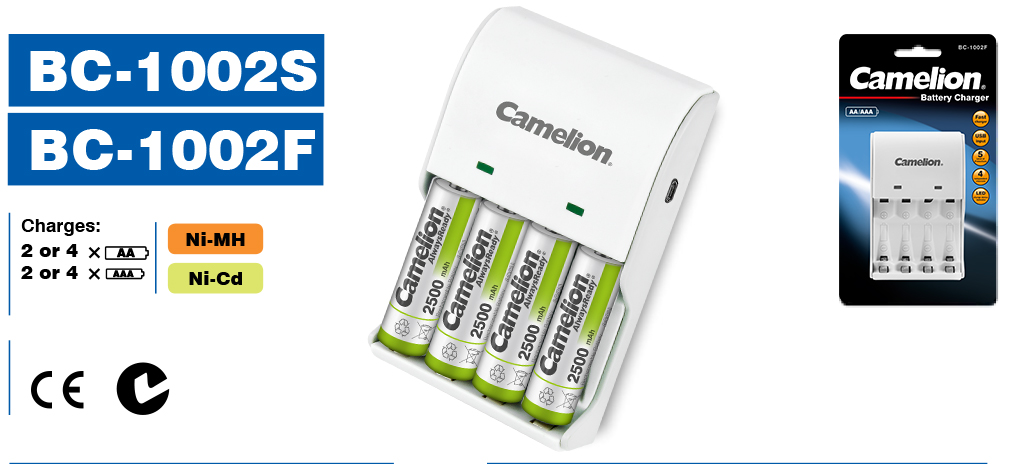

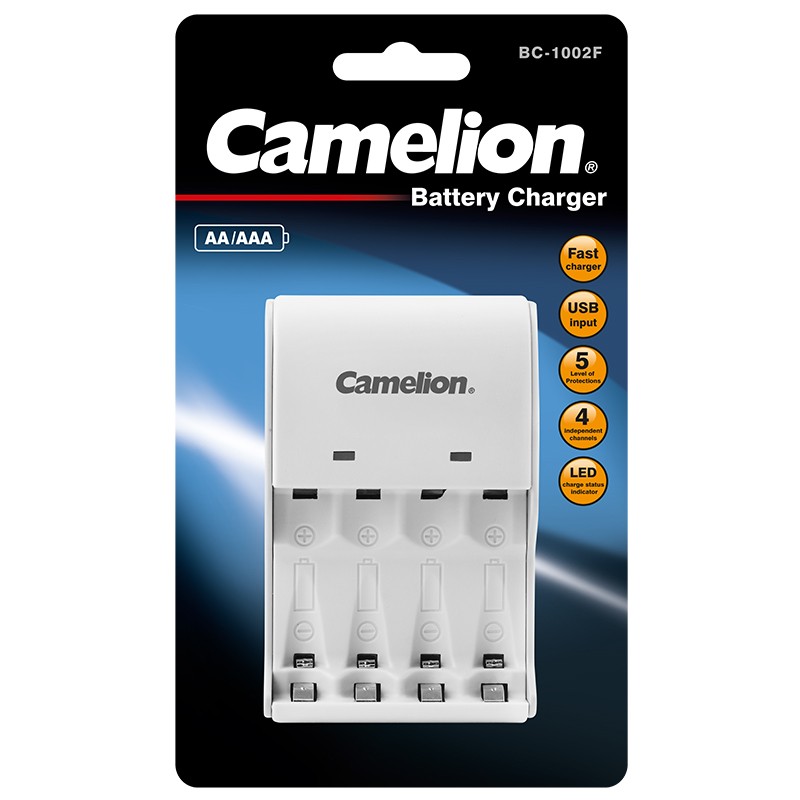

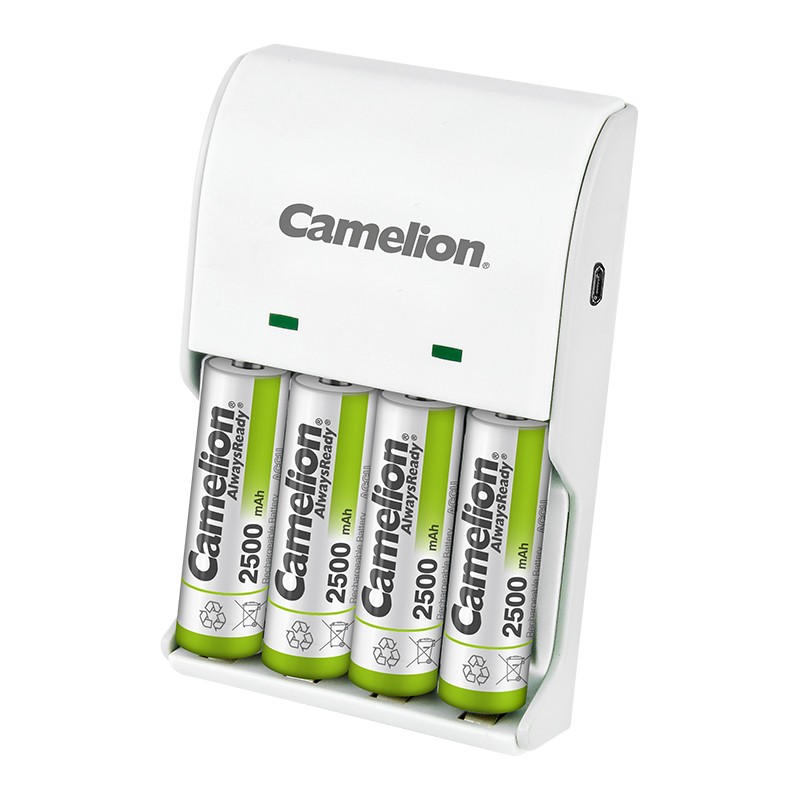

BC-1002S / BC-1002F


 ● 2 Independent Charging Channels
 ● Reverse Polarity Protection
 ● LED Indicators


 ● 4 Independent Charging Channels

 ● Trickle charging function
 ● Easy to Monitor LED Charge Indicators
 ● 5-Level Charge Protections:
    -△V cut off
    Timer Control Protection(6hours)
    Reverse Polarity Protection
    Short Circuit Protection
    Defective and Non-rechargeable battery detection

Red on
Green Fully charged/Trickle
Red flashing
Defective or non-rechargeable batteries / short circuit

Type of Battery
Charging Times (Appr.)

Ni-MH AA 2500 mAh 18 h
6 h
Ni-MH AA 2000 mAh
14 h
5 h
Ni-MH AA 1500 mAh
11 h
3.5 h
Ni-MH AAA 1000 mAh
14 h
5 h
Ni-MH AAA 800 mAh
11 h 4 h
Ni-MH AAA 600 mAh
8 h
3 h

* The charging time varies according to different batteries. For a more complete listing please visit



    Input: 5V  1A
    Output: 2 x (2.8V  0.2A) AA
                 2 x (2.8V  0.1A) AAA


    Input: 5V  1A
    Output: 4 x (1.4V  0.5A) AA
                  4 x (1.4V  0.25A) AAA
