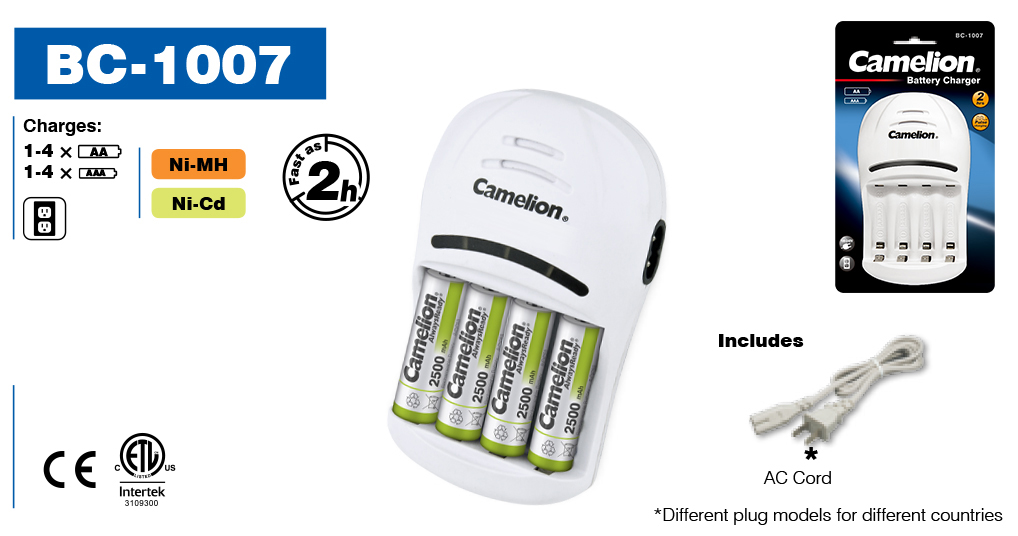

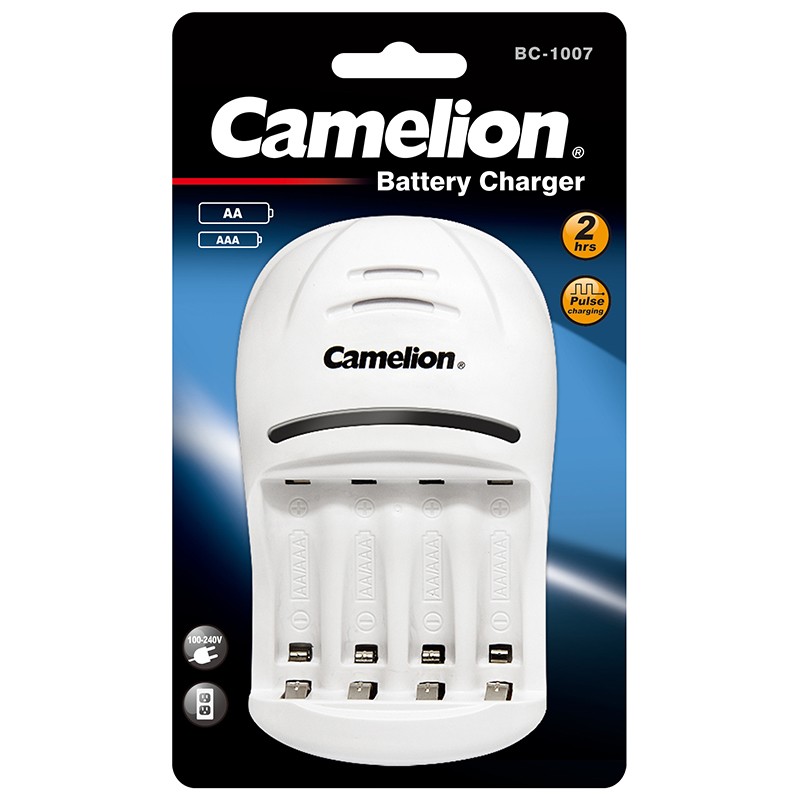

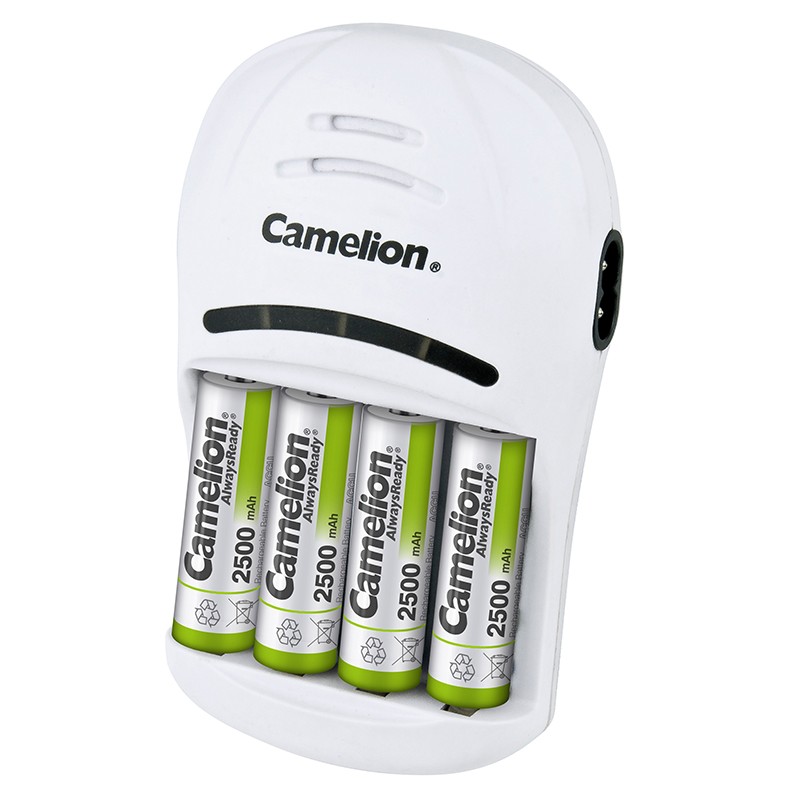

BC-1007








● 4 Independent Charging Channels

 ● 6 Level Charge Protections
         -△V Cut Off
         Timer Control Protection 3.5 hours (1-2 cells) or 7 hours (3-4 cells)
         Over Temperature Protection
         Reverse Polarity Protection
         Short Circuit Protection
         Defective and Non-rechargeable Battery Detection
● Worldwide Voltage
 ● LED Indicators

Red Charging
Red LED Flashing Defective / Non-rechargeable Battery / Short circuit
Green Fully charged / Trickle



Type of Battery Charging time(Appr.)
  1-2 Cells 3-4 Cells
Ni-MH AA 2700mAh 3 h 6 h
Ni-MH AA 2000mAh 2.5 h 4.5 h
Ni-MH AA 1500mAh 2 h 3.5 h
Ni-MH AAA 800mAh 100 min 3 h
Ni-Cd AA 1000mAh 70 min 2 h
Ni-Cd AAA 300mAh 40 min 70 min




    AC To DC Adapter
    Input: 100-240V~50/60Hz
    Output: AA 1000mA (1-2 pcs); 500mA (3-4 pcs)
                 AAA 600mA (1-2 pcs); 300mA (3-4 pcs)
