BC-0905A

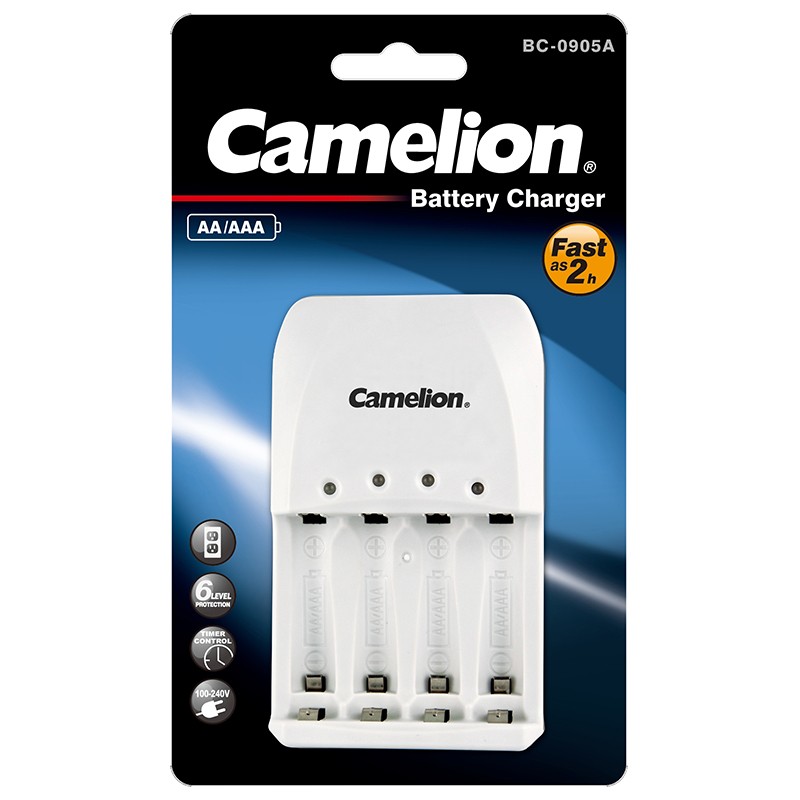

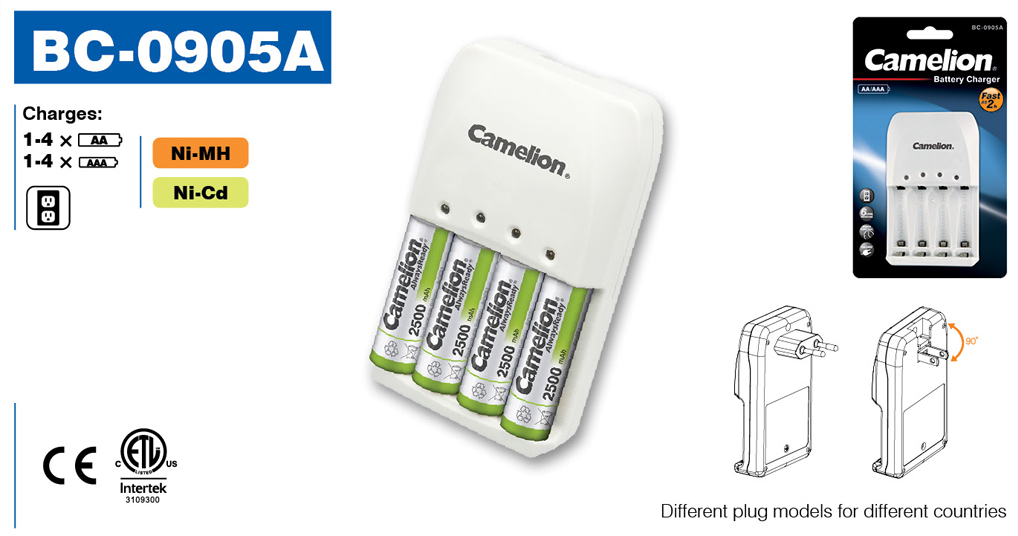

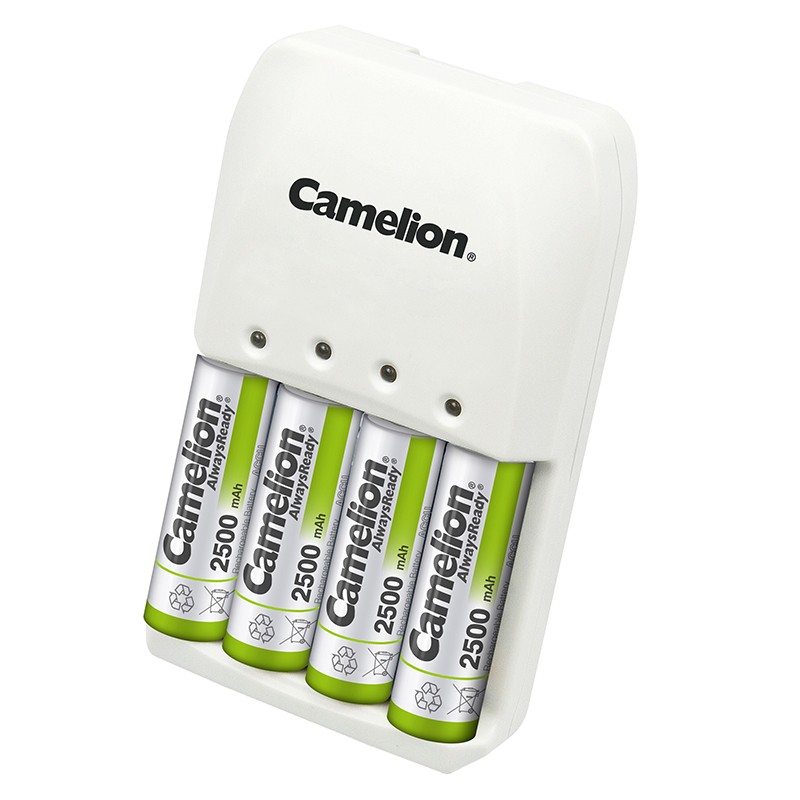

This LCD Super Fast Charger is designed to charge 1-4pcs Ni-Mh/Ni-Cd AA/AAA rechargeablebatteries. The 4 independent charging channels are

allowed to use respectively or with optional combination, AA and AAA batteries can be charged in each channel. The multiple charging protections

and 100-240VAC worldwide voltage input ensure you safely use it all over the world.







● 4 Independent Charging Channels

 ● 6 Level Charge Protections
         -△V Cut Off
         Timer Control Protection
         Over Temperature Protection
         Reverse Polarity Protection
         Over current and Short Circuit Protection
         Defective and Non-rechargeable Battery Detection
● Trickle Charge
 ● Switch and Match Plugs
 ● LED Indicators

Red Charging
Flashing Defective or non-rechargeable batteries / Short circuit
Green Fully charged / Trickle

Battery Type Charging Time(Appr.)
  1-2 Cells 3-4 Cells
Ni-MH AA 2700mAh 3 hrs 6 hrs
Ni-MH AA 2000mAh 2.5 hrs 4.5 hrs
Ni-MH AA 1500mAh 2 hrs 3.5 hrs
Ni-MH AAA 800mAh 100 min 3 hrs
Ni-Cd AA 1000mAh 70 min 2 hrs
Ni-Cd AAA 300mAh 40 min 70 min


* The charging time varies according to different batteries. For a more complete listing please visit http://www.camelionbattery.com/en/about.aspx?TypeId=10932








    Input: 100-240V~50/60Hz
    Output:  AA: 1A (1- 2 pcs),
                          0.5A (3-4 pcs)
                 AAA: 0.6A (1- 2 pcs),
                          0.3mA (3-4 pcs)
