Product ZoneBattery Charger : Ni-MH Battery Charger >
BC-0807F

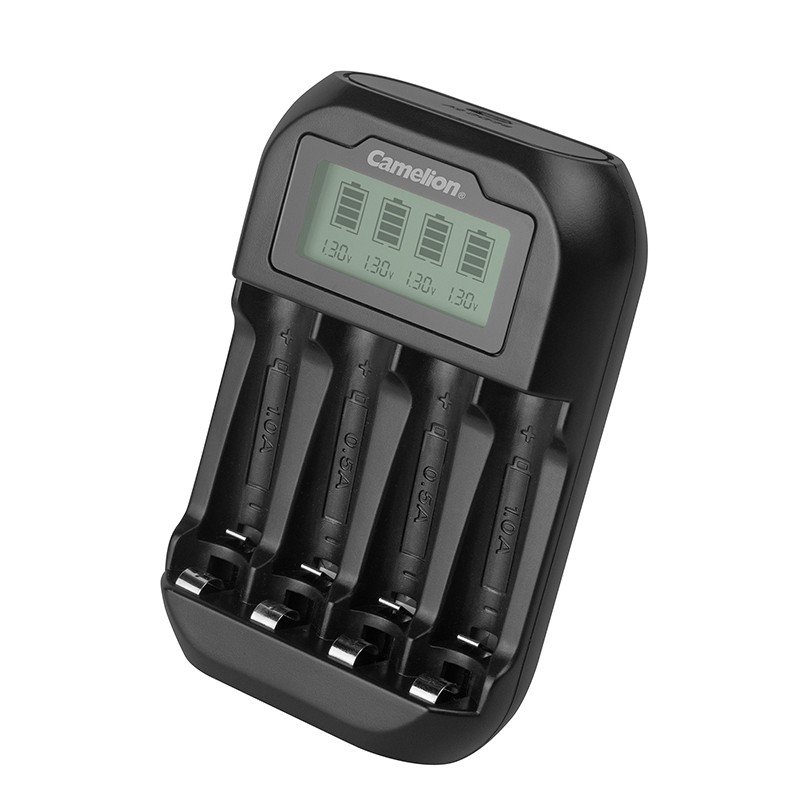

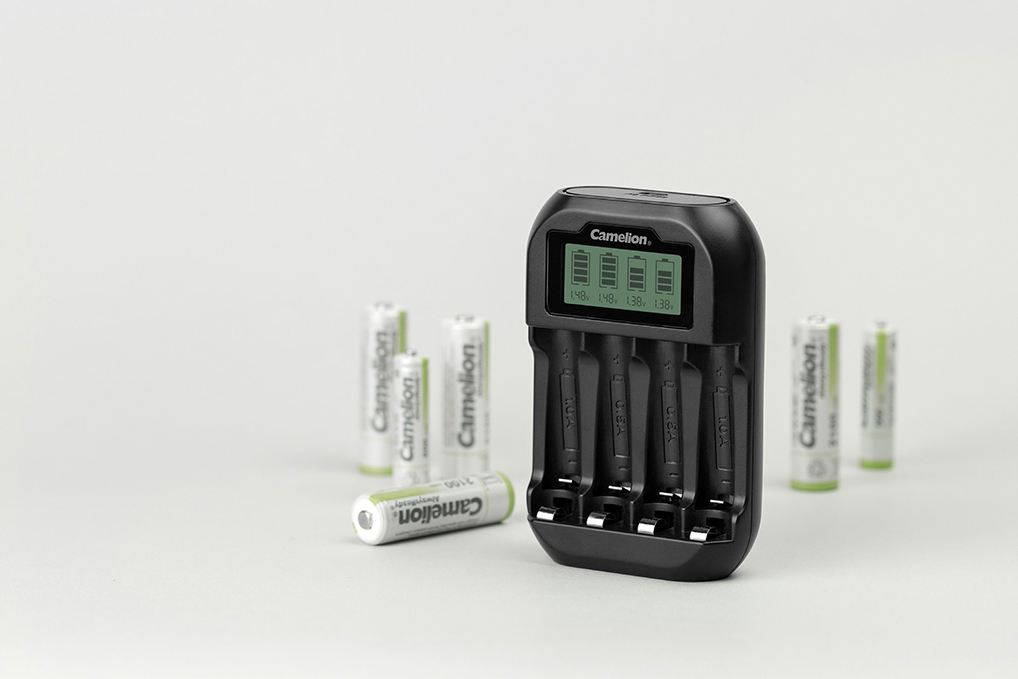

    BC-0807F USB Battery Charger can independently charge 1 to 4 pcs of rechargeable batteries independently. Withthe LED Charging Indicators, the

charger will provide different signals so that you will notice when the batteries arefully charged.





 4 Independent Charging Channels

 ● Easy to Monitor LED Charge Indicators

 Red  Charging
 Flashing  Defective or non-rechargeable
batteries / short circuit
 Green  Fully charged / trickle

 ● 6 Level Charge Protections:

      - V cut off
      Timer Control Protection
      Reverse Polarity Protection
      Over Current Protection
      Over Temperature Protection
      Defective and Non-rechargeable
      battery detection


Type of Battery Charging time(Appr.)
  1-2 Cells 3-4 Cells
Ni-MH AA 2700mAh 2h 4h
Ni-MH AA 2000mAh 1.5h 3h
Ni-MH AAA 1100mAh 1.5h 3h
Ni-MH AAA 800mAh 70min 2.5h
Ni-Cd AA 1000mAh 45min 2.5h
Ni-Cd AAA 300mAh 30min 1h

  *The charging time varies according to different batteries. For a

more complete listing please visit www.camelionbattery.com




    Input: 5V  2A
    Output: AA:  1600mA (1-2pcs)
                          800mA (3-4pcs)
                AAA: 800mA (1-2pcs)
                         400mA (3-4pcs)
